To replace control arm bushings, start by parking on level ground and disconnecting the battery’s negative terminal. Use a jack and jack stands to lift your vehicle safely. Remove the control arm, secure it in a vise, and press out old bushings with a hydraulic press or C-clamp. Clean the arm, inspect for damage, then press in new bushings with proper alignment and grease. Stick around to explore detailed steps and tips!
key Takeaways
- Park on level ground, engage the parking brake, and disconnect the negative battery terminal for safety.
- Use a hydraulic press or C-clamp with adapters to remove old bushings from the control arm.
- Clean the control arm, inspect for damage, and ensure proper alignment before installing new bushings.
- Press new bushings in with grease, aligning per manufacturer specs, using controlled bursts for installation.
- Reassemble suspension, torque bolts after lowering vehicle, and test for alignment and stability.
Preparing for the Replacement Process
Before you dive into replacing control arm bushings, guarantee your vehicle is ready for the task. Park on level ground, engage the parking brake, and disconnect the negative battery terminal to avoid electrical hazards. Ensure safety by using jack stands rated for your vehicle’s weight—don’t rely on hydraulic jacks alone.
Next, remove the wheels and loosen suspension components for bushing access. Refer to your service manual to pinpoint exact bushing locations. If needed, release torsion bars or support the subframe. While prepping, check on verifying transmission fluid levels are adequate to avoid unrelated issues. Also, spend a moment lubricating ball joints to maintain smooth operation. The rubber bushings connect the control arm body to your vehicle’s frame for optimal wheel movement. Remember that this job is complex and requires specific tools for safe and effective completion. Consider using OEM standards components from trusted manufacturers like TrueDrive or Moog for optimal performance. Wear ANSI-approved eye protection throughout, and follow torque specs precisely during reassembly for safety.
Gathering Essential Tools and Materials

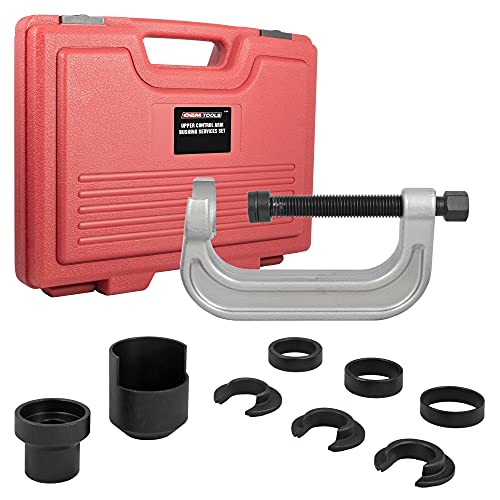

Preparation is key when replacing control arm bushings, so let’s gather the right tools and materials for a smooth job. Start with essential pressing tools like a hydraulic press, press/pull sleeve kit, and ball joint removal tool. You’ll need suspension tools such as a floor jack, jack stands, lug wrench, and metric sockets (15mm, 17mm, 18mm). Don’t forget safety glasses and work gloves. For the bushings, focus on selecting the right bushing material, like durable Powerflex or Strongflex polyurethane options. Strongflex bushings are noted for their ease of installation and long-term performance without metal sleeves. Also, prioritize choosing a quality bushing replacement kit, such as the OTC 4518 Stinger Puller or TeraFlex IR Bushing Kit. Finally, keep miscellaneous tools handy, including a hammer, drift, and open-end wrenches for precise assembly. Working on a level surface is essential for safely supporting the vehicle during the repair process. Thorough corrosion removal from the control arm housing will ensure proper bushing fitment and longevity.
Removing the Old Bushings Safely
As you dive into replacing control arm bushings, start by focusing on safely removing the old ones to avoid damaging the arm or surrounding components. Secure the control arm in a vice, ensuring stability. Use a bushing press kit or a C-clamp with adapters to apply gradual, even pressure, pushing the bushing out while avoiding damage to the metal. If it’s stubborn, lightly heat the rubber with a torch, but don’t overheat, conserving components like the arm’s structure. Alternatively, drill out the rubber core and cut the shell with a hacksaw, then tap it out with a chisel. Look for uneven tire wear as a key indicator that bushings need replacement. Wear gloves and eye protection, and support the arm properly to prevent bending, conserving components throughout this precise process. Applying penetrating fluid can also help loosen a seized bushing, making removal easier penetrating fluid helps. Before starting, check for and remove any snap rings that may be securing the bushing in place.
Cleaning and Inspecting the Control Arm
Now that you’ve removed the old bushings, it’s time to clean and inspect the control arm to certify it’s ready for new components. Grab a soft brush or cloth, wear gloves and safety glasses, and work in a well-lit area to clear dirt and grime. This control arm condition assessment guarantees no debris or grease interferes with your inspection. Look closely for bushing deterioration signs like cracks, sagging rubber, or fluid leaks. Ensure you check for any looseness in the control arm that might affect handling. Having someone turn the steering wheel while you observe can help detect excessive play in the bushings. Most control arms require inspection every 30,000 miles to maintain optimal suspension performance.
Check for issues with these steps:
- Inspect for rust or distortion on the control arm.
- Use a pry bar to test for excessive movement.
- Verify shaft alignment through the bushing area.
- Analyze tire wear patterns for underlying problems.
This thorough check keeps your suspension safe and reliable.
Installing the New Bushings Properly
Dive right into installing the new bushings by setting up a well-organized workspace for precision and safety. Unlike trailing arm suspensions, control arms require extra attention to maintain proper wheel alignment during bushing replacement. Rubber bushings absorb critical vibrations that affect vehicle stability and handling. Guarantee good ventilation and lighting, organize your hydraulic press, sockets, and torque wrench within reach, and secure the control arm in a vise to prevent slippage. Verify press adapters match bushing dimensions for a smooth process.
Next, focus on bushing orientation verification by aligning the offset center per manufacturer specs and matching any directional arrows. Confirm the correct side faces outward. For bushing preload assessment, ensure the metal sleeve protrudes evenly on both sides. Apply grease to the bushing edge, use stepped adapters, and press in controlled bursts, monitoring alignment. Stop if resistance spikes, then check installation depth against original positioning. Remember to tighten control arm bolts fully only after the vehicle is on the ground to ensure proper bushing preload alignment.
Reassembling the Vehicle Components
After pressing the new bushings into place, shift your focus to reassembling the vehicle components with precision. Start by securing the control arm into chassis mounts using manufacturer-specified torque settings and a star-pattern tightening sequence to avoid warping. Reattach sway bar end links and steering linkages, guaranteeing proper component clearance around all reinstalled parts. Remember that replacing steering rack bushings is often recommended during this process to ensure optimal performance. When working on GM vehicles, pay special attention to frame clearance requirements during component reinstallation. Depending on your suspension type, you may need to work with dual control arms if your vehicle uses a double-wishbone setup.
After installing new bushings, meticulously reassemble components, securing the control arm with precise torque settings and ensuring proper clearance for all parts.
To guarantee a flawless reassembly, follow these critical steps:
- Torque pivot bolts incrementally to prevent bushing distortion.
- Inspect brake lines and ABS sensors for unobstructed positioning.
- Use thread-locking compound on critical fasteners as specified.
- Perform a preliminary check for verifying suspension alignment before lowering the vehicle.
Finally, double-check all fasteners for engagement and confirm no contact issues exist during manual suspension cycling.
Testing and Verifying the Repair
Once you’ve reassembled the vehicle components, it’s critical to test and verify the control arm bushing repair to guarantee exceptional performance and safety. Start with a visual inspection, checking for damage or misalignment in the new bushings and ensuring proper seating. Use a torque wrench to confirm bolt specifications. Listen carefully for any clunking during steering, as this indicates improper installation or remaining bushing issues.
Next, perform physical tests by applying pry bar pressure to detect excessive movement and bouncing the vehicle to listen for noises. Since bent control arms can seriously impact suspension alignment, carefully inspect these components during testing. Conduct a road test, driving over speed bumps and executing sharp turns to assess stability. Pay attention to any vibrations or pulling to one side, as these could indicate unresolved issues with the bushings vibrations or pulling.
Use a tire wear gauge and alignment tools to validate accurate alignment. Finally, document results and schedule a 500-mile recheck to monitor extended performance, ensuring long-term reliability of your repair.
